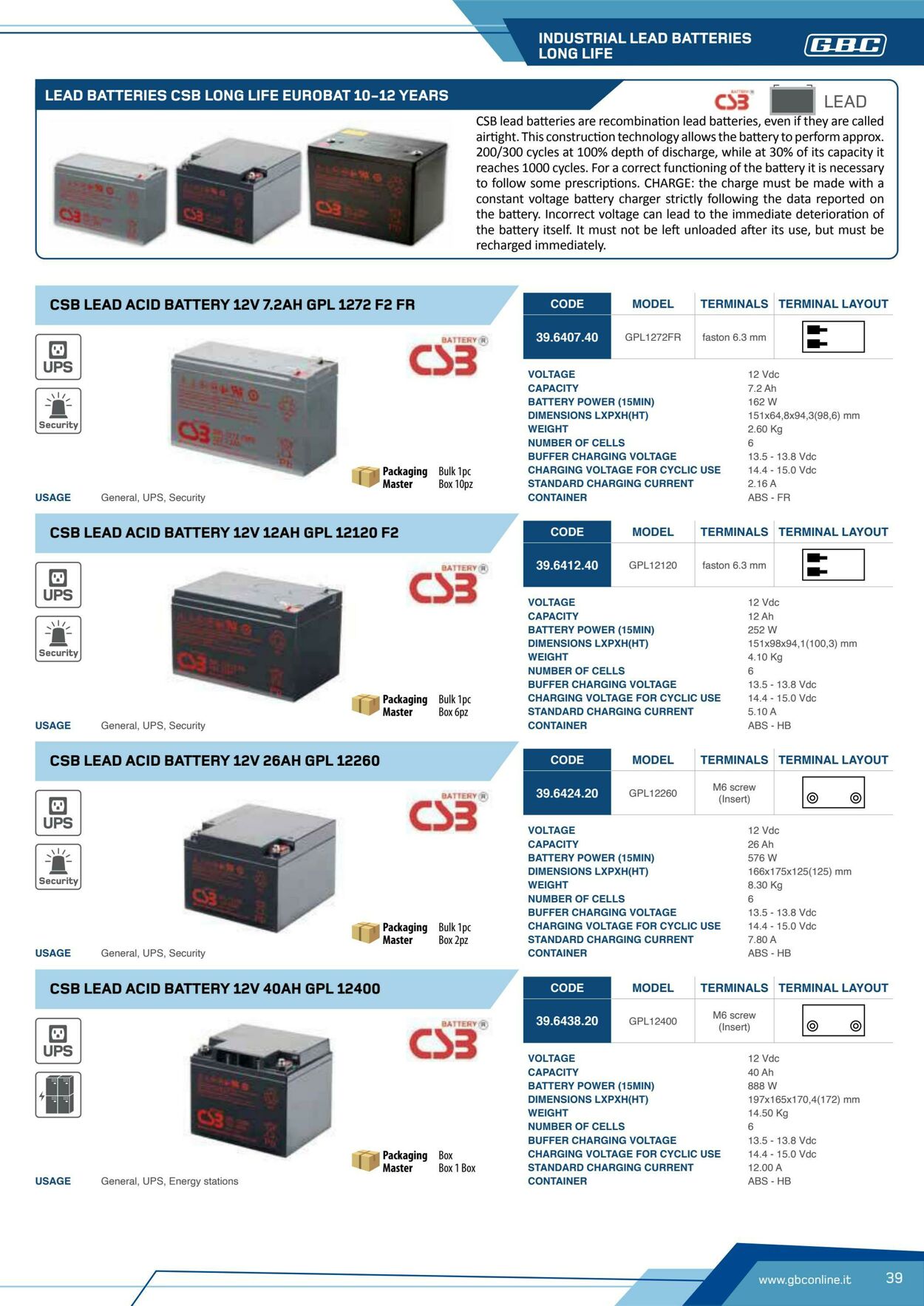

Volantino attuale GBC - Valido da 20.10 a 20.12 - Pagina N. 39

Prodotti in questo catalogo

box general

LEAD BATTERIES CSB LONG LIFE EUROBAT 10-12 YEARS INDUSTRIAL LEAD BATTERIES LONG LIFE cs i ceo CSB lead batteries are recombination lead batteries, even if they are called airtight. This construction technology allows the battery to perform approx. 200/300 cycles at 100% depth of discharge, while at 30% of its capacity it reaches 1000 cycles. For a correct functioning of the battery it is necessary to follow some prescriptions. CHARGE: the charge must be made with a constant voltage battery charger strictly following the data reported on the battery. Incorrect voltage can lead to the immediate deterioration of the battery itself. It must not be left unloaded after its use, but must be recharged immediately. CSB LEAD ACID BATTERY 12V 7.2AH GPL 1272 F2 FR Cp MODEL TERMINALS TERMINAL LAYOUT = sartERY È ECISYOYAZINMI GPLI272FR fastonesmm = CAPACITY 7.2Ah BATTERY POWER (1SMIN) 162W DIMENSIONS LXPXH(HT) 151x64,8x94,3(98,6) mm WEIGHT 2.60 Kg NUMBER OF CELLS 6 BUFFER CHARGING VOLTAGE 13.5 - 13.8 Vde Packaging Bulk pc CHARGING VOLTAGE FOR CYCLIC USE 14.4 - 15.0 Vde Master Box 10pz STANDARD CHARGING CURRENT 216A USAGE General, UPS, Security CONTAINER ABS-FR CSB LEAD ACID BATTERY 12V 12AH GPL 12120 F2 CODE MODEL TERMINALS TERMINAL LAYOUT carte & ECIIPNON GPLizizo tastoneamm mr CS3 VOLTAGE 12 Vdc CAPACITY 12Ah BATTERY POWER (15MIN) 252 W DIMENSIONS LXPXH(HT) 151x98x94,1(100,3) mm WEIGHT 4.10 Kg NUMBER OF CELLS 6 BUFFER CHARGING VOLTAGE 13.5- 13.8 Vde Packaging Bulk Ipc CHARGING VOLTAGE FOR CYCLIC USE 14.4 - 15.0 Vde Master Box6p STANDARD CHARGING CURRENT 5.10A USAGE General, UPS, Security CONTAINER ABS - HB CSB LEAD ACID BATTERY 12V 26AH GPL 12260 coDE MODEL TERMINALS TERMINAL LAYOUT aartERY È ESIPZIZIO cPLi2260 er © © CAPACITY 26 Ah BATTERY POWER (1SMIN) 576W DIMENSIONS LXPXH(HT) 166x175x125(125) mm WEIGHT 8.30 Kg NUMBER OF CELLS 6 BUFFER CHARGING VOLTAGE 13.5 - 13.8 Vde ir) Packaging Bulk 1pc CHARGING VOLTAGE FOR CYCLIC USE 14.4 - 15.0 Vdc Master Box 2pz STANDARD CHARGING CURRENT 7.80A USAGE General, UPS, Security CONTAINER ABS - HB CSB LEAD ACID BATTERY 12V 40AH GPL 12400 CODE MODEL —TERMINALS TERMINAL LAYOUT a nartERY È 39.6438.20 RIBEGIEZZIOI Mc © © UPS CsS3 VOLTAGE 12 Vde CAPACITY 40Ah BATTERY POWER (15MIN) 888 W DIMENSIONS LXPXH(HT) 197x165x170,4(172) mm WEIGHT 14.50 Kg NUMBER OF CELLS 6 BUFFER CHARGING VOLTAGE 13.5 - 13.8 Vde Packaging Box CHARGING VOLTAGE FOR CYCLIC USE 14.4 - 15.0 Vde Master Box 1 Box STANDARD CHARGING CURRENT 12.00 A USAGE General, UPS, Energy stations CONTAINER ABS - HB www.gbconline.it 39
